Compact Mechanical Switch Modules

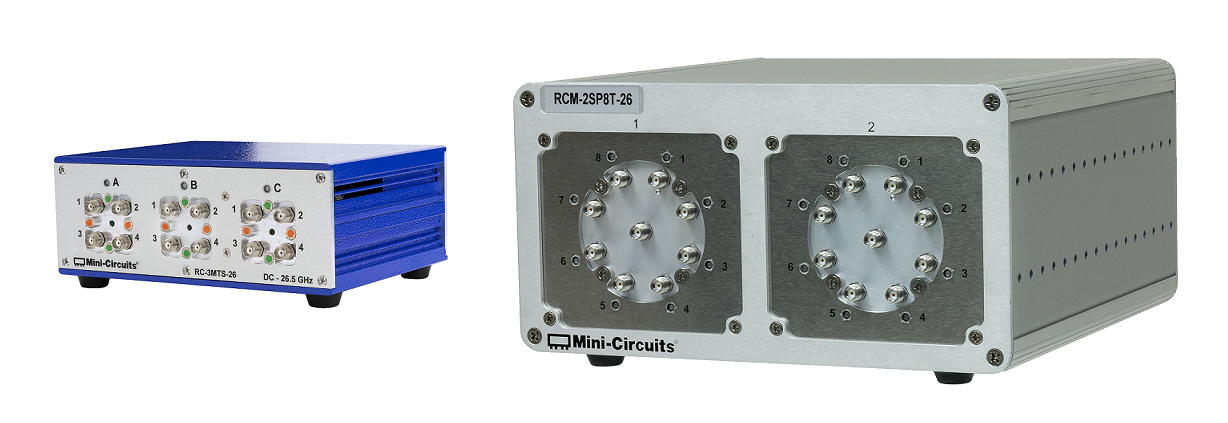

Mini-Circuits’ compact RC- and RCM-series USB- and Ethernet-controlled switch boxes offer versatile high-performance mechanical switch systems for lab and production environments. A wide range of switch options are available from stock, from SPDT to SP8T, with frequency ranges up to 50 GHz. Each switch box is integrated with a robust controller supporting Ethernet & USB interfaces. Our electromechanical switches offer exceptionally wide bandwidths with low insertion loss, high isolation and high power ratings, ideal for test and automation applications.

  • Typically available from stock for immediate shipment
  • Affordable solution for a wide range of signal routing and test requirements
  • Small size for almost any lab environment



Mechanical Switches | USB / Ethernet / TTL | DC to 50 GHz

Model Number Switch Type Termination Number of Switches F. Low (GHz) F. High (GHz) Insertion Loss (dB), Typ. Isolation (dB), Typ. RF Power (W), Max. Case Style Control Interfaces
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
RC-1SP4T-A18 SP4T Terminated 1 DC 18 0.25 80 20 MR1853
LxWxH
6.00x5.50x2.25
USB & Ethernet
RC-1SP4T-40 SP4T Terminated 1 DC 40 0.30 80 5 MR2935
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-1SP4T-26 SP4T Terminated 1 DC 26.5 0.20 80 5 MR2935
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-1SP4T-50 SP4T Terminated 1 DC 50 0.40 75 3 MR2935
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-1SP6T-A12 SP6T Terminated 1 DC 12 0.20 90 20 PF2320
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-1SP6T-26 SP6T Terminated 1 DC 26.5 0.25 90 5 PF2909
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-1SP6T-40 SP6T Terminated 1 DC 40 0.40 80 5 PF2909
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-1SP6T-50 SP6T Terminated 1 DC 50 0.40 75 3 PF2909
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-1SP6T-A18 SP6T Terminated 1 DC 18 0.40 100 20 PF2320
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-1SPDT-A18 SPDT Terminated 1 DC 18 0.25 85 40 LM1848
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-1SPDT-A26 SPDT Terminated 1 DC 26.5 0.6 65 20 LM1848
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-2MTS-18 DPDT Transfer 2 DC 18 0.20 86 10 SH2618
LxWxH
6.00x5.50x2.25
USB & Ethernet
RC-2MTS-26 DPDT Transfer 2 DC 26.5 0.30 75 5 SH3109
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-2MTS-40 DPDT Transfer 2 DC 40 0.40 70 5 SH3109
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-2MTS-50 DPDT Transfer 2 DC 50 0.80 65 3 SH3109
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-2MTS-12N DPDT Transfer 2 DC 12.4 0.25 80 50 SH3437
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-2SP4T-A18 SP4T Terminated 2 DC 18 0.25 80 20 MR1937
LxWxH
6.00x5.50x2.25
USB & Ethernet
RC-2SP4T-40 SP4T Terminated 2 DC 40 0.30 80 5 MR2616
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-2SP4T-26 SP4T Terminated 2 DC 26.5 0.20 80 5 MR2616
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-2SP4T-50 SP4T Terminated 2 DC 50 0.4 75 3 MR2616
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-2SP6T-A12 SP6T Terminated 2 DC 12 0.20 90 20 PF2018
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-2SP6T-26 SP6T Terminated 2 DC 26.5 0.25 90 5 PF2675
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-2SP6T-40 SP6T Terminated 2 DC 40 0.40 80 5 PF2675
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-2SP6T-A18 SP6T Terminated 2 DC 18 0.40 100 20 PF2018
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-2SP6T-50 SP6T Terminated 2 DC 50 0.40 75 3 PF2675
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-2SP6T-40R SP6T Unterminated 2 DC 40 0.40 80 5 PF3290
LxWxH
6.00x5.50x2.75
USB & Ethernet
RC-2SPDT-40 SPDT Unterminated 2 DC 40 0.6 65 5 LM3149
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-2SPDT-50 SPDT Unterminated 2 DC 50 0.4 80 3 LM3149
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-2SPDT-A18 SPDT Terminated 2 DC 18 0.25 85 40 LM1849
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-2SPDT-A26 SPDT Terminated 2 DC 26.5 0.6 65 20 LM1849
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-2SPDT-A40 SPDT Terminated 2 DC 40 0.6 65 5 LM1849
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-3MTS-18 DPDT Transfer 3 DC 18 0.20 86 10 SH3022
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-3MTS-26 DPDT Transfer 3 DC 26.5 0.50 70 5 SH3143
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-3MTS-40 DPDT Transfer 3 DC 40 0.50 70 5 SH3143
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-3MTS-50 DPDT Transfer 3 DC 50 0.80 65 3 SH3143
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-4SPDT-40 SPDT Unterminated 4 DC 40 0.6 65 5 LM3149
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-4SPDT-50 SPDT Unterminated 4 DC 50 0.4 80 3 LM3149
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-4SPDT-A18 SPDT Terminated 4 DC 18 0.25 85 40 LM1851
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-4SPDT-A26 SPDT Terminated 4 DC 26.5 0.54 65 20 LM2795
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-4SPDT-A40 SPDT Terminated 4 DC 40 0.6 65 5 LM1851
LxWxH
6.00x4.50x2.25
USB & Ethernet
RC-8SPDT-50 SPDT Unterminated 8 DC 50 0.4 80 3 LM3238
LxWxH
12.00x4.50x2.25
USB & Ethernet
RC-8SPDT-A18 SPDT Terminated 8 DC 18 0.25 85 40 LM1852
LxWxH
12.00x4.50x2.25
USB & Ethernet
RC-8SPDT-A40 SPDT Terminated 8 DC 40 0.6 65 5 LM1852
LxWxH
12.00x4.50x2.25
USB & Ethernet
RC-8SPDT-A26 SPDT Terminated 8 DC 26.5 0.6 65 30 LM1852
LxWxH
12.00x4.50x2.25
USB & Ethernet
RCM-1SP8T-26 SP8T Terminated 1 DC 26.5 0.3 70 5 UV2068
LxWxH
8.25x8.25x4.25
USB & Ethernet
RCM-1SP8T-12 SP8T Terminated 1 DC 12 0.2 90 20 UV2068
LxWxH
8.25x8.25x4.25
USB & Ethernet
RCM-2SP8T-26 SP8T Terminated 2 DC 26.5 0.3 70 5 UV2068
LxWxH
8.25x8.25x4.25
USB & Ethernet
RCM-2SP8T-12 SP8T Terminated 2 DC 12 0.2 90 20 UV2068
LxWxH
8.25x8.25x4.25
USB & Ethernet
RCM-3SP4T-18 SP4T Terminated 3 DC 18 0.5 80 20 UV2068
LxWxH
8.25x8.25x4.25
USB & Ethernet
RCM-3SPDT-75F SPDT (75Ω) Terminated 3 DC 2.15 0.6 70 0.1 UV2068
LxWxH
8.25x8.25x4.25
USB & Ethernet
RCM-6SPDT-18 SPDT Terminated 6 DC 18 0.3 66 20 UV2068
LxWxH
8.25x8.25x4.25
USB & Ethernet
ZK-MSP2TA-18 SPDT Terminated 1 DC 18 0.25 80 20 FP2963
LxWxH
2.25x0.50x2.74
TTL
ZK-MSP4TA-18 SP4T Terminated 1 DC 18 0.25 95 20 HJ3569
LxWxH
1.80x1.80x3.93
TTL
ZK-MSP6TA-12 SP6T Terminated 1 DC 12 0.2 90 20 HJ2964
LxWxH
2.10x2.10x3.97
TTL
ZK-MSP8TA-12 SP8T Terminated 1 DC 12 0.2 100 20 HJ3570
LxWxH
2.48x2.48x3.77
TTL
ZT-317 SPDT Terminated 3 DC 18 0.75 90 10 NW3004
LxWxH
19.00x10.16x1.73
USB & Ethernet
ZTM-4SP8T-26 SP8T Terminated 4 DC 26.5 0.8 70 5 YD2861
LxWxH
13.00x19.00x5.22
USB & Ethernet
ZTM-15 SP6T Terminated 6 DC 12 0.2 90 20 YD2861
LxWxH
13.00x19.00x5.22
USB & Ethernet
ZTRC-4SPDT-A18 SPDT Terminated 4 DC 18 0.25 80 20 VD2711
LxWxH
1.73x19.00x10.13
USB & Ethernet
ZTRC-4SPDT-A26 SPDT Terminated 4 DC 26.5 0.6 65 20 VD2711
LxWxH
1.73x19.00x10.13
USB & Ethernet
ZTRC-8SPDT-A18 SPDT Terminated 8 DC 18 0.25 80 20 VD2683
LxWxH
3.48x19.00x10.00
USB & Ethernet
ZTRC-8SPDT-A26 SPDT Terminated 8 DC 26.5 0.6 65 20 VD2683
LxWxH
3.48x19.00x10.00
USB & Ethernet
