RAM-8A+ Replacement Part Ref. Guide
ORIGINAL PART: RAM-8+ & MSA-0836 (Avago Technologies)
REPLACEMENT PART:RAM-8A+
This replacement part has been judged by Mini-Circuits Engineering as a suitable replacement part

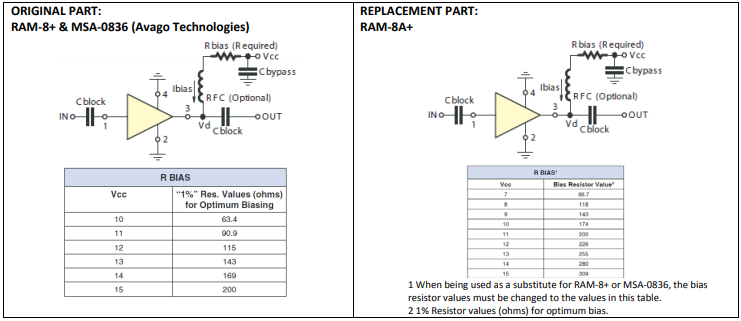

Application Circuits
Conclusion:
- FORM-FIT-FUNCTIONAL COMPATIBLE: Is Form Fit compatible. Performance; needs a different bias resistor (see above), has higher gain, better NF, better return loss and lower OIP3, see graphs.

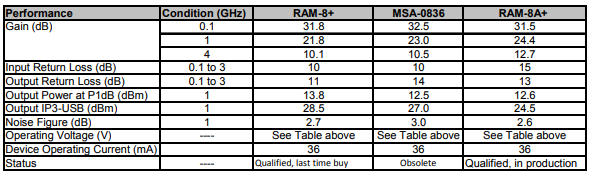

- Typical Performance Comparison:

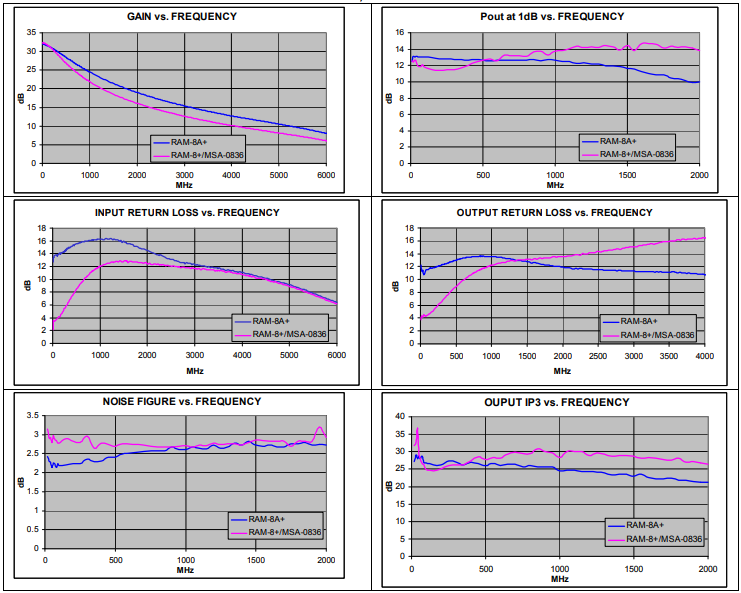

Comparison Performance Curves:
