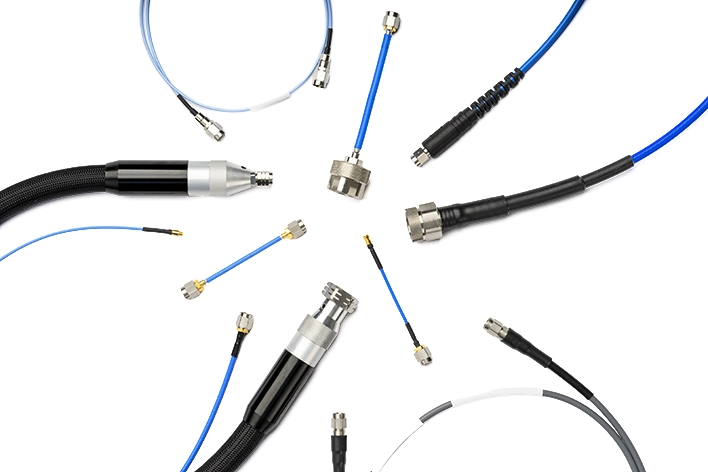

RF Cables


RF/microwave interconnect and precision test cables for 50-Ohm and 75-Ohm systems from DC to 50 GHz with a wide selection of connectors including 2.4mm, 2.92mm, SMA, N-Type, F-Type and BNC!

  • All combinations of male and female connectors
  • Options for straight, right angle, bulkhead, and quick-connect connections
  • Performance qualified for reliability in the most demanding environments

Send to a Friend
Back to Top

Armored Test Cables, Type N Male to Type N Male, 50 Ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 2.5 GHz Insertion Loss (dB) 2.5 - 6 GHz Insertion Loss (dB) 6 - 12 GHz Insertion Loss (dB) 12 - 18 GHz Return Loss (dB) DC - 2.5 GHz Typ. Return Loss (dB) 2.5 - 6 GHz Typ. Return Loss (dB) 6 - 12 GHz Typ. Return Loss (dB) 12 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
APC-6FT-NMNM+ HW1388-6
LxD
6.0x0.88
N Male N Male 6.0 1.83 1.2 2.0 3.0 3.8 30.0 30.0 27.0 22.0
APC-10FT-NMNM+ HW1388-10
LxD
10.0x0.88
N Male N Male 10.0 3.05 1.9 3.2 4.7 6.3 30.0 30.0 27.0 22.0
APC-15FT-NMNM+ HW1388-15
LxD
15x.88
N Male N Male 15.0 4.58 2.9 4.8 7.1 9.0 30.0 30.0 27.0 22.0


Armored Test Cables, Type K (2.92 mm) Male to Type K (2.92 mm) Male, 50 Ohm, DC to 40 GHz, Low Loss

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 6 GHz Insertion Loss (dB) 6 - 18 GHz Insertion Loss (dB) 18 - 26.5 GHz Insertion Loss (dB) 26.5 - 40 GHz Return Loss (dB) DC - 6 GHz Typ. Return Loss (dB) 6 - 18 GHz Typ. Return Loss (dB) 18 - 26.5 GHz Typ. Return Loss (dB) 26.5 - 40 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
KBL-1.5FT-LOW+ MA1628-1.5
LxD
1.50x.40
2.92 Male * 2.92 Male * 1.5 0.46 0.49 0.85 1.1 1.41 25.0 20.0 18.0 17.0
KBL-1M-LOW+ MA1628-3.28
LxD
3.28x.40
2.92 Male * 2.92 Male * 3.28 1.0 1.05 1.87 2.35 3.05 25.0 20.0 19.0 17.0
KBL-2M-LOW+ MA1628-6.56
LxD
6.56x.40
2.92 Male * 2.92 Male * 6.56 2.0 1.92 3.41 4.27 5.46 25.0 20.0 19.0 17.0
KBL-2FT-LOW+ MA1628-2
LxD
2.00x.40
2.92 Male * 2.92 Male * 2.0 0.61 0.61 1.05 1.34 1.74 25.0 20.0 19.0 17.0
KBL-4FT-LOW+ MA1628-4
LxD
4.00x.40
2.92 Male * 2.92 Male * 4.0 1.22 1.3 2.13 2.74 3.41 25.0 20.0 18.0 17.0


Quick Connect, 50 ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Insertion Loss (dB) DC - 2.5 GHz Insertion Loss (dB) 2.5 - 6 GHz Insertion Loss (dB) 6 - 12 GHz Insertion Loss (dB) 12 - 18 GHz Return Loss (dB) DC - 2.5 GHz Typ. Return Loss (dB) 2.5 - 6 GHz Typ. Return Loss (dB) 6 - 12 GHz Typ. Return Loss (dB) 12 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
CBL1.5SMQ-SM+ GM1006-1.5
LxD
1.50x0.42
Quick Connect SMA Male SMA Male 1.5 0.25 0.4 0.7 1.0 30.0 30.0 27.0 27.0
CBL2SMQ-NM+ GM1105-2
LxD
2.00x0.42
Quick Connect SMA Male N Male 2.0 0.4 0.7 1.1 1.4 30.0 30.0 27.0 27.0
CBL2SMQ-SM+ GM1006-2
LxD
2.00x0.42
Quick Connect SMA Male SMA Male 2.0 0.4 0.7 1.1 1.4 30.0 30.0 27.0 27.0
CBL3NMQ-NM+ GM1106-3
LxD
3.00x0.88
Quick Connect N Male N Male 3.0 0.6 1.0 1.6 2.0 30.0 30.0 27.0 27.0
CBL3NMQ-SM+ GM1105-3
LxD
3.00x0.42
Quick Connect N Male SMA Male 3.0 0.6 1.0 1.5 1.9 30.0 30.0 27.0 27.0
CBL3NMQ-SMQ+ GM1105-3
LxD
3.00x0.42
Quick Connect SMA Male Quick Conn. N Male 3.0 0.6 1.0 1.5 1.9 30.0 30.0 27.0 27.0
CBL3SMQ-SM+ GM1006-3
LxD
3.00x0.42
Quick Connect SMA Male SMA Male 3.0 0.6 1.0 1.5 1.9 30.0 30.0 27.0 27.0
CBL6NMQ-NM+ GM1106-6
LxD
6.00x0.88
Quick Connect N Male N Male 6.0 1.2 2.0 3.0 3.8 30.0 30.0 27.0 22.0
CBL6NMQ-SM+ GM1105-6
LxD
6.00x0.42
Quick Connect N Male SMA Male 6.0 1.2 2.0 3.0 3.8 30.0 30.0 27.0 22.0
CBL6SMQ-SM+ GM1006-6
LxD
6.00x0.42
Quick Connect SMA Male SMA Male 6.0 1.2 2.0 3.0 3.8 30.0 30.0 27.0 22.0
CBL10SMQ-SM+ GM1006-10
LxD
10.00x0.42
Quick Connect SMA Male SMA Male 10.0 1.8 3.1 4.8 6.1 30.0 30.0 27.0 22.0


Precision Test Series, 50 Ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 2.5 GHz Insertion Loss (dB) 2.5 - 6 GHz Insertion Loss (dB) 6 - 12 GHz Insertion Loss (dB) 12 - 18 GHz Return Loss (dB) DC - 2.5 GHz Typ. Return Loss (dB) 2.5 - 6 GHz Typ. Return Loss (dB) 6 - 12 GHz Typ. Return Loss (dB) 12 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
CBL-0.5M-NMNM+ GM1106-1.64
LxD
1.64x.88
N Male N Male 1.64 0.5 0.3 0.6 0.9 1.2 30.0 30.0 27.0 27.0
CBL-1.5M-NMNM+ GM1106-4.92
LxD
4.92x.88
N Male N Male 4.92 1.5 1.0 1.6 2.4 3.4 30.0 30.0 27.0 22.0
CBL-1M-NMNM+ GM1106-3.3
LxD
3.30x0.88
N Male N Male 3.28 1.0 0.7 1.1 1.6 2.3 30.0 30.0 27.0 22.0
CBL-2M-NMNM+ GM1106-6.56
LxD
6.56x.88
N Male N Male 6.56 2.0 1.2 2.1 3.3 4.0 30.0 30.0 27.0 22.0
CBL-2FT-NMNM+ GM1106-2
LxD
2.00x0.88
N Male N Male 2.0 0.61 0.4 0.7 1.1 1.4 30.0 30.0 27.0 27.0
CBL-3FT-NMNM+ GM1106-3
LxD
3.00x0.88
N Male N Male 3.0 0.91 0.6 1.0 1.5 1.9 30.0 30.0 27.0 27.0
CBL-5FT-NMNM+ GM1106-5
LxD
5.00x0.88
N Male N Male 5.0 1.52 1.0 1.6 2.5 2.5 30.0 30.0 27.0 22.0
CBL-6FT-NMNM+ GM1106-6
LxD
6.00x0.88
N Male N Male 6.0 1.83 1.2 2.0 3.0 3.8 30.0 30.0 27.0 22.0
CBL-10FT-NMNM+ GM1106-10
LxD
10.00x0.88
N Male N Male 10.0 3.0 1.9 3.2 4.7 6.3 30.0 30.0 27.0 22.0
CBL-15FT-NMNM+ GM1106-15
LxD
15.00x0.88
N Male N Male 15.0 4.57 2.5 4.9 7.3 9.2 30.0 30.0 27.0 22.0
CBL-20FT-NMNM+ GM1106-20
LxD
20.00x0.88
N Male N Male 20.0 6.1 3.3 6.2 9.4 12.0 30.0 30.0 27.0 22.0
CBL-25FT-NMNM+ GM1106-25
LxD
25.00x0.88
N Male N Male 25.0 7.62 4.1 7.8 11.7 15.0 30.0 30.0 27.0 22.0
CBL3NMQ-NM+ GM1106-3
LxD
3.00x0.88
Quick Connect N Male N Male 3.0 0.91 0.6 1.0 1.6 2.0 30.0 30.0 27.0 27.0
CBL6NMQ-NM+ GM1106-6
LxD
6.00x0.88
Quick Connect N Male N Male 6.0 1.83 1.2 2.0 3.0 3.8 30.0 30.0 27.0 22.0


Precision Test Series, 50 Ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 2.5 GHz Insertion Loss (dB) 2.5 - 6 GHz Insertion Loss (dB) 6 - 12 GHz Insertion Loss (dB) 12 - 18 GHz Return Loss (dB) DC - 2.5 GHz Typ. Return Loss (dB) 2.5 - 6 GHz Typ. Return Loss (dB) 6 - 12 GHz Typ. Return Loss (dB) 12 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
CBL-0.5M-SMSM+ GM1006-1.64
LxD
1.64x0.42
SMA Male SMA Male 1.64 0.5 0.3 0.6 0.9 1.1 30.0 30.0 27.0 27.0
CBL-1.5FT-SMSM+ GM1006-1.5
LxD
1.50x0.42
SMA Male SMA Male 1.5 0.46 0.25 0.4 0.7 1.0 30.0 30.0 27.0 27.0
CBL-1.5M-SMSM+ GM1006-4.92
LxD
4.92x0.42
SMA Male SMA Male 4.9 1.5 1.0 1.6 2.4 3.1 30.0 30.0 27.0 22.0
CBL-1M-SMSM+ GM1006-3.28
LxD
3.28x0.42
SMA Male SMA Male 3.28 1.0 0.7 1.1 1.6 2.0 30.0 30.0 27.0 27.0
CBL-1FT-SMSM+ GM1006-1
LxD
1.00x0.42
SMA Male SMA Male 1.0 0.3 0.22 0.37 0.6 0.75 30.0 30.0 27.0 27.0
CBL-2M-SMSM+ GM1006-6.56
LxD
6.56x0.42
SMA Male SMA Male 6.56 2.0 1.1 2.1 3.1 4.0 30.0 30.0 27.0 22.0
CBL-2FT-SMSM+ GM1006-2
LxD
2.00x0.42
SMA Male SMA Male 2.0 0.61 0.4 0.7 1.1 1.4 30.0 30.0 27.0 27.0
CBL-3FT-SMSM+ GM1006-3
LxD
3.00x0.42
SMA Male SMA Male 3.0 0.91 0.6 1.0 1.5 1.9 30.0 30.0 27.0 27.0
CBL-4FT-SMSM+ GM1006-4
LxD
4.00x0.42
SMA Male SMA Male 4.0 1.22 0.7 1.3 1.95 2.55 30.0 30.0 27.0 27.0
CBL-5FT-SMSM+ GM1006-5
LxD
5.00x0.42
SMA Male SMA Male 5.0 1.52 1.0 1.6 2.5 3.4 30.0 30.0 27.0 22.0
CBL-6FT-SMSM+ GM1006-6
LxD
6.00x0.42
SMA Male SMA Male 6.0 1.82 1.2 2.0 3.0 3.8 30.0 30.0 27.0 22.0
CBL-10FT-SMSM+ GM1006-10
LxD
10.00x0.42
SMA Male SMA Male 10.0 3.04 1.8 3.1 4.8 6.1 30.0 30.0 27.0 22.0
CBL-12FT-SMSM+ GM1006-12
LxD
12.00x0.42
SMA Male SMA Male 12.0 3.66 2.0 3.8 5.9 7.3 30.0 30.0 27.0 22.0
CBL-15FT-SMSM+ GM1006-15
LxD
15.0x.42
SMA Male SMA Male 15.0 4.57 2.5 4.7 7.3 9.25 30.0 30.0 27.0 22.0
CBL-20FT-SMSM+ GM1006-20
LxD
20.0x.42
SMA Male SMA Male 20.0 6.1 3.9 6.7 9.7 12.5 30.0 30.0 27.0 22.0
CBL-25FT-SMSM+ GM1006-25
LxD
25.00x0.42
SMA Male SMA Male 25.0 7.62 4.1 7.8 11.7 15.0 30.0 30.0 27.0 22.0
CBL-50FT-SMSM+ GM1006-50
LxD
50x.42
SMA Male SMA Male 50.0 15.24 9.7 15.9 24.0 31.0 32.0 30.0 29.0 21.0
CBL1.5SMQ-SM+ GM1006-1.5
LxD
1.50x0.42
SMA Male SMA Male 1.5 0.46 0.25 0.4 0.7 1.0 30.0 30.0 27.0 27.0
CBL2SMQ-SM+ GM1006-2
LxD
2.00x0.42
Quick Connect SMA Male SMA Male 2.0 0.61 0.4 0.7 1.1 1.4 30.0 30.0 27.0 27.0
CBL3SMQ-SM+ GM1006-3
LxD
3.00x0.42
Quick Connect SMA Male SMA Male 3.0 0.91 0.6 1.0 1.5 1.9 30.0 30.0 27.0 27.0
CBL6SMQ-SM+ GM1006-6
LxD
6.00x0.42
Quick Connect SMA Male SMA Male 6.0 1.82 1.2 2.0 3.0 3.8 30.0 30.0 27.0 22.0
CBL10SMQ-SM+ GM1006-10
LxD
10.00x0.42
Quick Connect SMA Male SMA Male 10.0 3.04 1.8 3.1 4.8 6.1 30.0 30.0 27.0 22.0


Precision Test Series, 50 Ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 2.5 GHz Insertion Loss (dB) 2.5 - 6 GHz Insertion Loss (dB) 6 - 12 GHz Insertion Loss (dB) 12 - 18 GHz Return Loss (dB) DC - 2.5 GHz Typ. Return Loss (dB) 2.5 - 6 GHz Typ. Return Loss (dB) 6 - 12 GHz Typ. Return Loss (dB) 12 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
CBL-0.5M-SMNM+ GM1105-1.64
LxD
1.64x.42
SMA Male N Male 1.64 0.5 0.4 0.6 0.9 1.2 30.0 30.0 27.0 27.0
CBL-1.5M-SMNM+ GM1105-4.92
LxD
4.92x.42
SMA Male N Male 4.92 1.5 0.9 1.6 2.5 3.2 30.0 30.0 27.0 22.0
CBL-1M-SMNM+ GM1105-3.28
LxD
3.28x0.42
SMA Male N Male 3.28 1.0 0.6 1.0 1.9 2.2 30.0 30.0 27.0 27.0
CBL-2M-SMNM+ GM1105-6.56
LxD
6.56x0.42
SMA Male N Male 6.56 2.0 1.2 2.3 3.5 4.2 30.0 30.0 27.0 22.0
CBL-2FT-SMNM+ GM1105-2
LxD
2.00x0.42
SMA Male N Male 2.0 0.61 0.4 0.7 1.1 1.4 30.0 30.0 27.0 27.0
CBL-3FT-SMNM+ GM1105-3
LxD
3.00x0.42
SMA Male N Male 3.0 0.91 0.6 1.0 1.5 1.9 30.0 30.0 27.0 27.0
CBL-4FT-SMNM+ GM1105-4
LxD
4.00x0.42
SMA Male N Male 4.0 1.22 0.7 1.3 1.95 2.55 30.0 30.0 27.0 27.0
CBL-6FT-SMNM+ GM1105-6
LxD
6.00x0.42
SMA Male N Male 6.0 1.83 1.2 2.0 3.0 3.8 30.0 30.0 27.0 22.0
CBL-10FT-SMNM+ GM1105-10
LxD
10.00x0.42
SMA Male N Male 10.0 3.04 1.9 3.0 4.55 6.06 30.0 30.0 27.0 22.0
CBL-15FT-SMNM+ GM1105-15
LxD
15.00x0.42
SMA Male N Male 15.0 4.57 2.5 4.9 7.3 9.2 30.0 30.0 27.0 22.0
CBL2SMQ-NM+ GM1105-2
LxD
2.00x0.42
Quick Connect SMA Male N Male 2.0 0.61 0.4 0.7 1.1 1.4 30.0 30.0 27.0 27.0
CBL3NMQ-SM+ GM1105-3
LxD
3.00x0.42
Quick Connect N Male SMA Male 3.0 0.91 0.6 1.0 1.5 1.9 30.0 30.0 27.0 27.0
CBL3NMQ-SMQ+ GM1105-3
LxD
3.00x0.42
Quick Connect SMA Male Quick Connect 3.0 0.91 0.6 1.0 1.5 1.9 30.0 30.0 27.0 27.0
CBL6NMQ-SM+ GM1105-6
LxD
6.00x0.42
Quick Connect N Male SMA Male 6.0 1.83 1.2 2.0 3.0 3.8 30.0 30.0 27.0 22.0


Precision Test Series, 50 Ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 2.5 GHz Insertion Loss (dB) 2.5 - 6 GHz Insertion Loss (dB) 6 - 12 GHz Insertion Loss (dB) 12 - 18 GHz Return Loss (dB) DC - 2.5 GHz Typ. Return Loss (dB) 2.5 - 6 GHz Typ. Return Loss (dB) 6 - 12 GHz Typ. Return Loss (dB) 12 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
CBL-3FT-SFSM+ GM1133-3
LxD
3.00x0.51
SMA Female SMA Male 3 0.91 0.6 1.0 1.5 1.9 30 30 27 27


Precision Test Series, 50 Ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 2.5 GHz Insertion Loss (dB) 2.5 - 6 GHz Insertion Loss (dB) 6 - 12 GHz Insertion Loss (dB) 12 - 18 GHz Return Loss (dB) DC - 2.5 GHz Typ. Return Loss (dB) 2.5 - 6 GHz Typ. Return Loss (dB) 6 - 12 GHz Typ. Return Loss (dB) 12 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
CBL-2FT-SFNM+ GM1132-2
LxD
2.00x0.51
SMA Female N Male 2 0.61 0.4 0.7 1.1 1.4 30 30 27 27
CBL-3FT-SFNM+ GM1132-3
LxD
3.00x0.51
SMA Female N Male 3 0.91 0.6 1.0 1.5 1.9 30 30 27 27
CBL-6FT-SFNM+ GM1132-6
LxD
6.00x0.51
SMA Female N Male 6 1.83 1.1 2.0 3.0 3.8 30 30 27 22


Precision Test Series, 75 Ohm, DC to 3 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 0.5 GHz Typ. Insertion Loss (dB) 0.5 - 1 GHz Typ. Insertion Loss (dB) 1 - 2 GHz Typ. Insertion Loss (dB) 2 - 3 GHz Typ. Return Loss (dB) DC - 0.5 GHz Typ. Return Loss (dB) 0,5 - 1 GHz Typ. Return Loss (dB) 1 - 2 GHz Typ. Return Loss (dB) 2 - 3 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
CBL-3NM-75+ ND1920-3
LxD
3.00x.81
N Male N Male 3.0 0.91 0.27 0.41 0.6 0.7 32.0 30.0 26.0 24.0
CBL-6NM-75+ ND1920-6
LxD
6.00x.81
N Male N Male 6.0 1.83 0.51 0.75 1.02 1.43 36.0 30.0 26.0 25.0


Precision Test Series, 75 Ohm, DC to 3 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 0.5 GHz Typ. Insertion Loss (dB) 0.5 - 1 GHz Typ. Insertion Loss (dB) 1 - 2 GHz Typ. Insertion Loss (dB) 2 - 3 GHz Typ. Return Loss (dB) DC - 0.5 GHz Typ. Return Loss (dB) 0,5 - 1 GHz Typ. Return Loss (dB) 1 - 2 GHz Typ. Return Loss (dB) 2 - 3 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
CBL-1MFM-75+ ND1919-3.28
LxD
3.28x.54
F Male F Male 3.28 1.0 0.32 0.49 0.78 0.89 37.0 32.0 32.0 24.0
CBL-2FM-75+ ND1919-2
LxD
2.00x.54
F Male F Male 2.0 0.61 0.22 0.32 0.45 0.61 38.0 38.0 34.0 25.0
CBL-3FM-75+ ND1919-3
LxD
3.00x.54
F Male F Male 3.0 0.91 0.28 0.41 0.6 0.77 35.2 30.4 29.3 26.8
CBL-6FM-75+ ND1919-6
LxD
6.00x.54
F Male F Male 6.0 1.83 0.53 0.77 1.12 1.43 33.9 32.4 29.5 28.3


Cables, Flexible Test Cables, (SMA Male to SMA Male) , 50 Ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 2 GHz Insertion Loss (dB) 2 - 6 GHz Insertion Loss (dB) 6 - 12 GHz Insertion Loss (dB) 12 - 18 GHz Return Loss (dB) DC - 2 GHz Typ. Return Loss (dB) 2 - 6 GHz Typ. Return Loss (dB) 6 - 12 GHz Typ. Return Loss (dB) 12 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
ULC-1.5FT-SMSM+ NS1992-1.5
LxD
1.5x.426
SMA Male SMA Male 1.5 0.46 0.4 0.7 1.1 1.4 23 22 19 19
ULC-1M-SMSM+ NS1992-3.28
LxD
3.28x.426
SMA Male SMA Male 3.28 1.0 0.8 1.5 2.2 2.8 28 26 23 22
ULC-1FT-SMSM+ NS1992-1
LxD
1.00x.426
SMA Male SMA Male 1.0 0.30 0.2 0.3 0.5 0.7 34 30 30 30
ULC-2FT-SMSM+ NS1992-2
LxD
2.00x.426
SMA Male SMA Male 2.0 0.61 0.5 0.9 1.4 1.8 22 21 19 19
ULC-3FT-SMSM+ NS1992-3
LxD
3.00x.426
SMA Male SMA Male 3.0 0.91 0.8 1.4 2.1 2.7 24 22 18 18
ULC-4FT-SMSM+ NS1992-4
LxD
4.0x.426
SMA Male SMA Male 4.0 1.22 1.0 1.8 2.7 3.4 24 23 21 21
ULC-6FT-SMSM+ NS1992-6
LxD
6.0x.426
SMA Male SMA Male 6.0 1.83 1.5 2.7 4.1 5.2 23 22 19 19
ULC-10FT-SMSM+ NS1992-10
LxD
10.0x.426
SMA Male SMA Male 10.0 3.05 1.6 3.5 5.5 7.5 32 26 26 25


Cables, Flexible Test Cables, (N Male to N Male), 50 Ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 2 GHz Insertion Loss (dB) 2 - 6 GHz Insertion Loss (dB) 6 - 12 GHz Insertion Loss (dB) 12 - 18 GHz Return Loss (dB) DC - 2 GHz Typ. Return Loss (dB) 2 - 6 GHz Typ. Return Loss (dB) 6 - 12 GHz Typ. Return Loss (dB) 12 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
ULC-1M-NMNM+ NS2208-3.28
LxD
3.28x.812
N Male N Male 3.28 1.0 0.5 1.2 1.9 2.6 31 29 25 22
ULC-2FT-NMNM+ NS2208-2
LxD
2x.812
N Male N Male 2.0 0.61 0.3 0.7 1.1 1.6 33 31 27 25
ULC-3FT-NMNM+ NS2208-3
LxD
3x.812
N Male N Male 3.0 0.91 0.5 1 1.6 2.2 22 22 23 19
ULC-6FT-NMNM+ NS2208-6
LxD
6x.812
N Male N Male 6.0 1.83 1 2.1 3.4 4.6 30 28 30 30


Cables, Flexible Test Cables, (SMA Male to N Male) , 50 Ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 2 GHz Insertion Loss (dB) 2 - 6 GHz Insertion Loss (dB) 6 - 12 GHz Insertion Loss (dB) 12 - 18 GHz Return Loss (dB) DC - 2 GHz Typ. Return Loss (dB) 2 - 6 GHz Typ. Return Loss (dB) 6 - 12 GHz Typ. Return Loss (dB) 12 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
ULC-1M-SMNM+ NS1993-3.28
LxD
3.28x.426
SMA Male N Male 3.28 1.0 0.5 1.2 1.8 2.5 25 24 23 19
ULC-2FT-SMNM+ NS1993-2
LxD
2.00x.426
SMA Male N Male 2.0 0.61 0.3 0.7 1.1 1.5 24 22 21 18
ULC-3FT-SMNM+ NS1993-3
LxD
3.00x.426
SMA Male N Male 3.0 0.91 0.5 1.0 1.7 2.2 24 23 21 19
ULC-4FT-SMNM+ NS1993-4
LxD
4.00x.426
SMA Male N Male 4.0 1.22 0.6 1.4 2.3 3.1 25 24 21 22
ULC-6FT-SMNM+ NS1993-6
LxD
6.00x.426
SMA Male N Male 6.0 1.83 0.9 2.1 3.3 4.4 24 22 22 21


Cables, Super-Flexible Test Cables, (SMA Male to SMA Male), 50 Ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 1 GHz Insertion Loss (dB) 1 - 2 GHz Insertion Loss (dB) 2 - 4 GHz Insertion Loss (dB) 4 - 10 GHz Insertion Loss (dB) 10 - 18 GHz Return Loss (dB) DC - 6 GHz Typ. Return Loss (dB) 6 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
SLC-1M-SMSM+ PH2043-3.28
LxD
3.28x.36
Straight SMA Straight SMA 3.28 1.0 0.9 1.6 2.2 3.4 4.9 32.9 29.0
SLC-2FT-SMSM+ PH2043-2
LxD
2.0x.36
Straight SMA Straight SMA 2 0.61 0.6 1.0 1.3 2.0 2.9 33.2 28.5
SLC-3FT-SMSM+ PH2043-3
LxD
3.0x.36
Straight SMA Straight SMA 3 0.91 0.8 1.4 2.0 3.1 4.4 32.3 28.0
SLC-4FT-SMSM+ PH2043-4
LxD
4x.36
Straight SMA Straight SMA 4 1.22 1.1 1.9 2.7 4.1 6.0 32.6 27.7
SLC-6FT-SMSM+ PH2043-6
LxD
6x.36
Straight SMA Straight SMA 6 1.83 1.6 2.7 3.9 6.0 8.8 34.1 29.9


Flexible Test Cables (SMA Male to SMA Male), 50 ohm, DC to 26 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 6 GHz Typ. Insertion Loss (dB) 6 - 18 GHz Typ. Insertion Loss (dB) 18 - 26 GHz Typ. Return Loss (dB) DC - 6 GHz Typ. Return Loss (dB) 6 - 18 GHz Typ. Return Loss (dB) 18 - 26 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
FLC-1.5FT-SMSM+ MU1838-1.5
LxD
1.5x.42
SMA Male SMA Male 1.5 0.46 0.68 1.03 1.26 27.0 19.0 17.0
FLC-1M-SMSM+ MU1838-3.28
LxD
3.28x.42
SMA Male SMA Male 3.28 1.0 1.12 2.13 2.62 27.0 19.0 18.0
FLC-2M-SMSM+ MU1838-6.56
LxD
6.56x.42
SMA Male SMA Male 6.56 2.0 2.15 4.29 5.5 26.0 19.0 17.0
FLC-2FT-SMSM+ MU1838-2
LxD
2.0x.42
SMA Male SMA Male 2.0 0.61 0.69 1.33 1.61 28.0 19.0 17.0
FLC-3FT-SMSM+ MU1838-3
LxD
3.0x.42
SMA Male SMA Male 3.0 0.91 1.08 2.01 2.5 27.0 19.0 17.0
FLC-4FT-SMSM+ MU1838-4
LxD
4.0x.42
SMA Male SMA Male 4.0 1.22 1.4 2.85 3.55 28.0 19.0 17.0
FLC-6FT-SMSM+ MU1838-6
LxD
6.0x.42
SMA Male SMA Male 6.0 1.83 1.97 3.94 5.04 29.0 19.0 18.0


Flexible Test Cables (SMA Male to N Male), 50 ohm, DC to 18 GHz

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 6 GHz Typ. Insertion Loss (dB) 6 - 16 GHz Typ. Insertion Loss (dB) 16 - 18 GHz Typ. Return Loss (dB) DC - 6 GHz Typ. Return Loss (dB) 6 - 16 GHz Typ. Return Loss (dB) 16 - 18 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
FLC-2M-SMNM+ MU2339-6.56
LxD
6.56 x .84
SMA Male N Male 6.56 2.0 1.43 2.62 4.03 32.3 34.2 32.3


Armored Test Cables - Type 2.92mm Male to Type 2.92mm Male, 50 Ohm, DC to 40 GHz, Low Loss

Model Number Case Style Conn. 1 Conn. 2 Length (ft) Length (m) Insertion Loss (dB) DC - 6 GHz Insertion Loss (dB) 6 - 18 GHz Insertion Loss (dB) 18 - 26.5 GHz Insertion Loss (dB) 26.5 - 40 GHz Return Loss (dB) DC - 6 GHz Typ. Return Loss (dB) 6 - 18 GHz Typ. Return Loss (dB) 18 - 26.5 GHz Typ. Return Loss (dB) 26.5 - 40 GHz Typ.
Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort Sort
KBL-1.5FT-LOW+ MA1628-1.5
LxD
1.50x.40
2.92 Male * 2.92 Male * 1.5 0.46 0.49 0.85
