The Big Deal

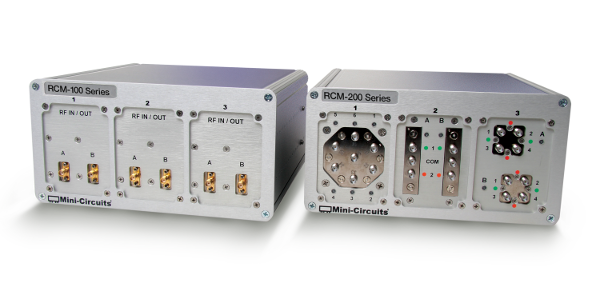

Mini-Circuits' RCM series modular test systems offer flexibility and fast turnaround for compact test setups. The design consists of a small, light-weight chassis with up to three open hardware windows, each of which may be outfitted with your choice of programmable attenuators or switches.


  • 4 - 6 programmable attenuator channels
  • 0 to 30, 60, 90 or 110 dB attenuation range per channel (1 - 6000 MHz)
  • 0 to 120 dB attenuation range per channel (1 - 4000 MHz)
  • Models up to 8 GHz also available on request

  • 6 mechanical SPDT or transfer (DC-18 GHz) switches
  • 3 mechanical SP4T (DC-18 GHz) or SP6T (DC-12 GHz) switches
  • 2 mechanical SP8T switches (DC-12 GHz)
  • Custom combinations of SPDT, SP4T, SP6T and transfer switches

The system can be controlled via USB or Ethernet (supporting both HTTP and Telnet network protocols).  Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments (both 32-bit and 64-bit systems).

System Specifications:
Document Description
RCM-100 Data Sheet Specifications for the multi-channel attenuator system
RCM-200 Data Sheet Specifications for the modular switch system
Mechanical Outline Mechanical drawing and dimensions
Environmental Specs Environmental specifications and test conditions

Component Specifications:
Component Document Description
Programmable Attenuator (120 dB) Data Sheet Test Data Full electrical and mechanical specifications
Programmable Attenuator (110 dB) Data Sheet Test Data Full electrical and mechanical specifications
Programmable Attenuator (90 dB) Data Sheet Test Data Full electrical and mechanical specifications
Programmable Attenuator (60 dB) Data Sheet Test Data Full electrical and mechanical specifications
Programmable Attenuator (30 dB) Data Sheet Test Data Full electrical and mechanical specifications
Mechanical SPDT Switch Data Sheet Test Data Full electrical and mechanical specifications
Mechanical SP4T Switch Data Sheet Test Data Full electrical and mechanical specifications
Mechanical SP6T Switch Data Sheet Test Data Full electrical and mechanical specifications
Mechanical SP8T Switch Data Sheet Test Data Full electrical and mechanical specifications
Mechanical Transfer Switch Data Sheet Test Data Full electrical and mechanical specifications

Application Notes:
Document Rev Description
Quick Setup Guide 18-Sep-17 How to connect and get started with Mini-Circuits' software controlled test systems
User Manual A3 User manual for hardware and GUI
Programming Manual A9 Full programming instructions for USB/Ethernet control on Windows/Linux
Program Examples & Troubleshooting B3 Reference tables and worked examples in a range of programming environments
App Note - AN-49-001 OR Summary of software support for Mini-Circuits test equipment
App Note - VISA Control OR Instructions for controlling Mini-Circuits test equipment using VISA
Software Download:
Software Rev Description
GUI A9 User friendly graphical user interface for Windows operating systems
CD A9 Full software package, including GUI program, DLL COM Objects 32/64 bit, Linux support, drivers and documentation
ModularZT.dll 1-Oct-17 ActiveX COM object; recommended for 32 bit programming environments on Windows operating systems. Registration required in Windows using regsvr32.
ModularZT64.dll 1-Oct-17 .Net class library; recommended for 32/64 bit programming environments on Windows operating systems

Firmware Download:
Model Firmware Download Applicable Serial Numbers
RCM Series C2 Please contact testsolutions@minicircuits.com

Programming Examples:

Download programming examples for a range of operating systems and environments below.

Connection OS DLL Type DLL Environment Description File
USB Windows ActiveX modularzt.dll C# Using the ActiveX COM object with C#
USB Windows ActiveX modularzt.dll VB Using the ActiveX COM object with VB6
USB Windows ActiveX modularzt.dll C++ Using the ActiveX COM object with Visual C++ (MFC)
USB Windows ActiveX modularzt.dll C++ Using the ActiveX COM object with Visual C++ (CLR 2005)
USB Windows ActiveX modularzt.dll C++ Using the ActiveX COM object with Visual C++ (CLR 2010)
USB Windows ActiveX modularzt.dll CVI Using the ActiveX COM object with CVI10
USB Windows ActiveX modularzt.dll Delphi Using the ActiveX COM object with Delphi 5
USB Windows ActiveX modularzt.dll LabVIEW Using the ActiveX COM object with LabVIEW 8 (32-bit)
USB Windows ActiveX modularzt.dll MatLab Using the ActiveX COM object with MatLab 2008
USB Windows ActiveX modularzt.dll VB Using the ActiveX COM object with VB.Net
USB Windows ActiveX modularzt.dll Python Using the ActiveX COM object with Python
USB Windows .NET modularzt64.dll VB Using the .NET library with VB.NET
USB Windows .NET modularzt64.dll C# Using the .NET library with C#.NET
USB Windows .NET modularzt64.dll LabVIEW Using the .NET library with LabVIEW 9 (64-bit)
USB Windows .NET modularzt64.dll MatLab Using the .NET library with MatLab 2009
USB Windows .NET modularzt64.dll C++ Using the .NET library with Visual C++ (CLR 2005)
USB Windows .NET modularzt64.dll C++ Using the .NET library with Visual C++ (CLR 2010)
USB Windows .NET modularzt64.dll C# Using the .NET library with C#.NET to create an executable
HTTP All None None Python Using HTTP in Python to communicate over Ethernet

Step 1 of 3: Configure Your Test System

1.a) Select from the catalog range of multi-channel attenuator systems (enter the quantity required in the right-hand column):

Model
Name
Channels Performance per Channel Quantity
Frequency Attenuation Step Size
RCM-30 4 1 - 6000 MHz 0 - 30 dB 0.25 dB
RCM-60 4 1 - 6000 MHz 0 - 60 dB 0.25 dB
RCM-100 4 1 - 6000 MHz 0 - 95 dB 0.25 dB
RCM-110 4 1 - 6000 MHz 0 - 110 dB 0.25 dB
RCM-120 4 1 - 4000 MHz 0 - 120 dB 0.25 dB
RCM-30-6 6 1 - 6000 MHz 0 - 30 dB 0.25 dB
RCM-60-6 6 1 - 6000 MHz 0 - 60 dB 0.25 dB
RCM-100-6 6 1 - 6000 MHz 0 - 95 dB 0.25 dB
RCM-110-6 6 1 - 6000 MHz 0 - 110 dB 0.25 dB
RCM-120-6 6 1 - 4000 MHz 0 - 120 dB 0.25 dB

1.b) Select from the catalog range of switch systems (enter the quantity required in the right-hand column):

Model
Name
Switch
Type
Number of
Switches
Frequency Quantity
RCM-6SPDT-18 SPDT 3 DC-18 Ghz
RCM-3SP4T-18 SP4T 3 DC-18 Ghz
RCM-3SP6T-12 SP6T 3 DC-12 Ghz
RCM-2SP8T-12 SP8T 2 DC-12 Ghz
RCM-1SP8T-12 SP8T 1 DC-12 Ghz

1.c) Select a custom switch configuration:



Your chosen test system configuration:
Window Window Contents Model Number(s) Frequency
1 Blank Window None None
2 Blank Window None None
3 Blank Window None None

Included accessories:

  • USB control cable - 6.8 ft (USB-CBL-AB-7+)
  • Ethernet control cable - 5 ft (CBL-RJ45-MM-5+)
  • Full software & documentation (including GUI, DLL API files, user & programming manual)
