HXG-122+: LTE Performance vs Output Power

LTE Base Station MMIC Amplifier

The HXG-122+ is a High Dynamic Range MSiP (Mini-Circuits System in Package) Amplifier designed over a focused frequency range specifically for applications which require high linear performance, advanced digital communications systems such as LTE which require excellent ACLR suppression and low EVM.

The HXG-122+ provides typically +47 dBm OIP3 at 700MHz which translates to high linear performance in multi-carrier and complex signal environments such as LTE supporting ACLR_1 Measurements of better than - 60 dBc at +11 dBm output.

The HXG-122+ is characterized using a high peak-toaverage ratio OFDM signal used for next generation LTE within the 700MHz Downlink Band.

Figure 1 (HXG-122+ Test Board)

DUT Configuration:
Device:HXG-122+ Test board���
Supply Voltage:5V, 150 mA
Temperature: 25C
Note:All data is referenced to the test board connectors

Test Signal:LTE FDD Downlink (2009-3), Full filled 64 QAM, 10MHz (50 RB) Fc = 700 MHz

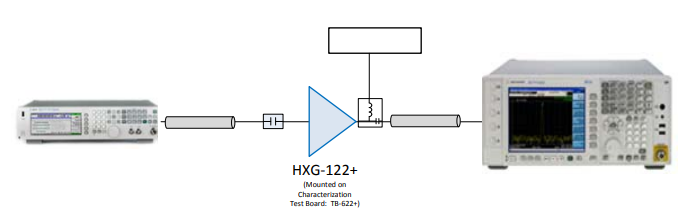

Measurement Setup

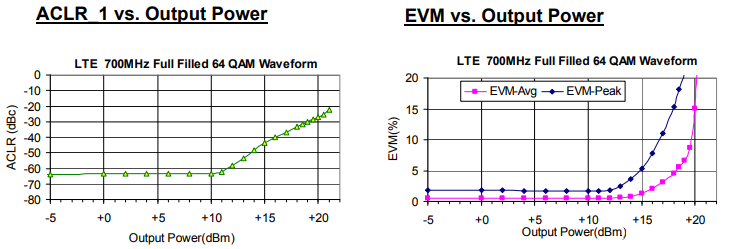

Summary Data

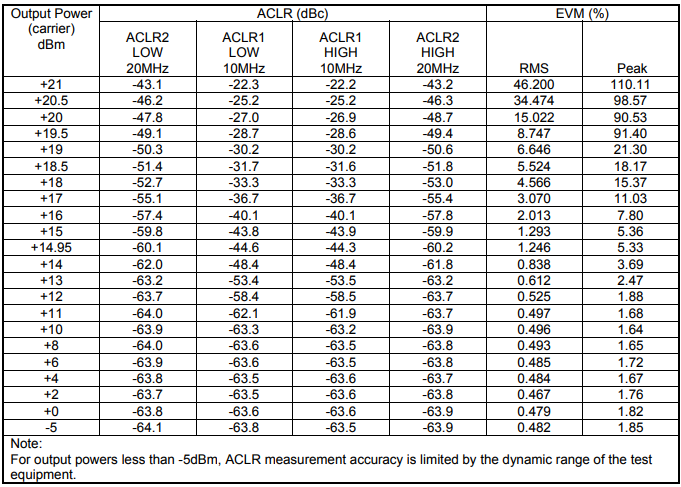

Table 1 Data of ACLR and EVM vs. Output Power

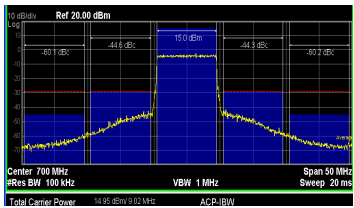

Figure 2 ACLR Plot at Output Power of +14.95 dBm
Figure 3 EVM Plot at Output Power of +14.95 dBm
