RF and Wireless Test Systems
CONTACT US Reconfigurable Switch Systems
| Model | Frequency (MHz) | Height | Description | Details |
|---|---|---|---|---|
| ZTRC-4SPDT-A18 | DC - 18 GHz | 1U | 4 x MSP2TA-18XL+ |  |
| ZTRC-8SPDT-A18 | DC - 18 GHz | 2U | 8 x MSP2TA-18XL+ | |
| ZTRC-4SPDT-A26 | DC - 26.5 GHz | 1U | 4 x MSP2TA-26XL+ | |
| ZTRC-8SPDT-A26 | DC - 26.5 GHz | 2U | 8 x MSP2TA-26XL+ | |
| ZT-4SP8T-12 | DC - 12 GHz | 3U | 4 x MSP8TA-12-12D+ | |
| ZT-12SP4T-18 | DC - 18 GHz | 4U | 12 x MSP4TA-18+ | |
| ZT-12SP6T-12R | DC - 12 GHz | 4U | 12 x MSP6TA-12+ (Rear Panel) | |
| ZT-166 | DC - 18 GHz | 4U | 10 x MSP4TA-18+, 1 x MSP2TA-18XL+ | |
| ZT-196 | DC - 12 GHz | 4U | 12 x MSP6TA-12+ | |
| ZT-252 | DC - 12 GHz DC - 18 GHz 0.4 - 6 GHz |
5U | 5 x MSP6TA-12+, 6 x MSP2TA-18XL+, 4 x ZN2PD2-63-S+ |
|
| ZTM-201 | DC - 12 GHz DC - 18 GHz |
5U | 8 x MSP6TA-12+, 3 x MSP4TA-18+, 1 x MSP2TA-18XL+ |
|
CONTACT US N x M Switch Systems
| Model Number | Description | Details |
|---|---|---|
| ZTVX-n-12 Series | 2 x 8, 2 x 10, 2 x12, 2 x 16 Switch matrices, DC-12 GHz | |
| ZTVX-n-18 Series | 2 x 8, 2 x 10, 2 x12, 2 x 16 Switch matrices, DC-18 GHz | |
| ZT-150 | Multi-Function VNA Port Expander, DC-18 GHz | |
| ZT-175 | 6 x 8 Blocking Switch Matrix, DC-12 GHz | |
| ZT-177 | 4 x 4 Non-Blocking Switch Matrix, 400-6000 MHz | |
| ZT-20X6NB | 20 x 6 Non-Blocking Switch Matrix, 600-6000 MHz | |
| ZT-24X8B | 24 x 8 Blocking Switch Matrix, 600-6000 MHz | |
CONTACT US Multi-Channel Attenuation Systems
| Model Number | Description | Details |
|---|---|---|
| ZTDAT-Series | Multi-Channel Attenuation Systems, DC-6 GHz, 0-95 dB | |
CONTACT US Mesh Network Test Systems
| Model Number | Description | Connectors | Datasheet |
|---|---|---|---|
| Overview | Summary of N-Port Mesh Network Systems | |
|
| ZTMN-0495AS | 4 Port Mesh Network (350-6000 MHz) | SMA/N-type/TNC | |
| ZTMN-0695A | 6 Port Mesh Network (2000-6000 MHz) | SMA/N-type/TNC | |
| ZTMN-0695B | 6 Port Mesh Network (600-6000 MHz) | SMA/N-type/TNC | |
| ZTMN-0890A | 8 Port Mesh Network (30-2000 MHz) | SMA/N-type/TNC | |
| ZT-211 | Custom 6 Port Mesh Network Test Drawer | SMA | |
CONTACT US Solid State Switch Matrices
| Model Number | Description | Details |
|---|---|---|
| ZTS Series | Panel Mounted Solid State Switch Matrices | |
| ZT-24SP2T-63VH | 24x SP2T Switch Chassis, 100 dB isolation, 4W power, 100-6000 MHz | |
CONTACT US Signal Distribution Assemblies
| Model Number | Description | Details |
|---|---|---|
| ZT-104 | 16-Way Active Splitter, BNC,10 MHz | |
| ZT-201 | 20x2-Way Splitter Array, Type N, 350-6000 MHz | |
| ZT-207 | 6x 2-Way Splitter Array, Type N/SMA, 350-6000 MHz | |
| ZT-208 | 4x 4-Way Splitter Array, Type N, 380-4600 MHz | |
| ZT-246 | 16x 2-Way Splitter Array, SMA, 350-6000 MHz | |
CONTACT US High Power Test Systems
| Model Number | Description | Details |
|---|---|---|
| HPA-25W-272+ | 25W Rack Mounted Power Amplifier | |
| HPA-272+ | 100W Rack Mount Amplifier | |
| HPA-50W-63+ | 50W Rack Mounted Power Amplifier | |
| HPA-100W-63+ | 100W Rack Mount Amplifier | |
| ZT-10HPS-272 | 100W 10-Way Splitter Chassis | |
| ZT-20HPS-63-S | 100W 20-Way Splitter Chassis | |
| ZT-184 | 40 Channel Splitter Panel | |
CONTACT US Panel Mounted Structures
| Model | Frequency (MHz) | Height | Description | Photo |
|---|---|---|---|---|
| ZT-182 | DC - 6000 | 4U | 48x N-N Adapters |
|

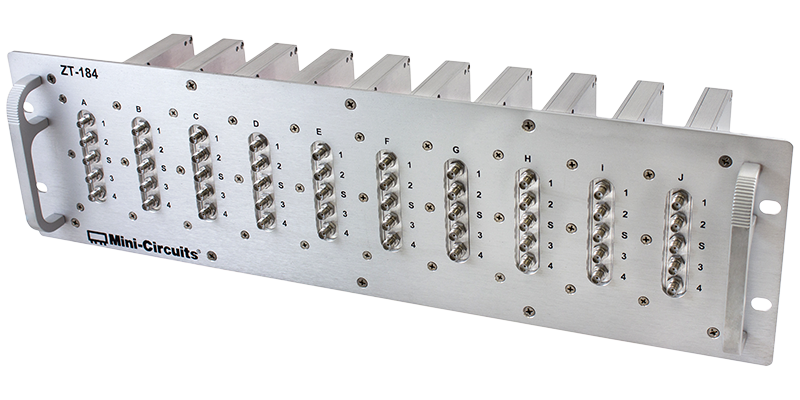

| ZT-184 | 600 - 6000 | 3U | 10x ZN4PD1-63LW-S+, SMA, 4-Way Splitters |
|
| ZT-222 | 350 - 6000 | 4U | 20x ZN2PD2-63-N+, N-Type, 2-Way Splitters |
|
| ZT-223 | 350 - 6000 | 4U | 20x ZN2PD2-63-N+, N-Type, 2-Way Splitter |
|
| ZT-226 | DC - 6000 | 2U | 24x N-N Adapters |
|
| ZT-229B | 0.5 - 600 | 2U | 16x Z99SC-62-S+, SMA, 2-Way Splitters |
|
| ZT-230 | 1 - 500 | 2U | 8x ZFDC-10-1-S+, SMA, 10dB Couplers |
|

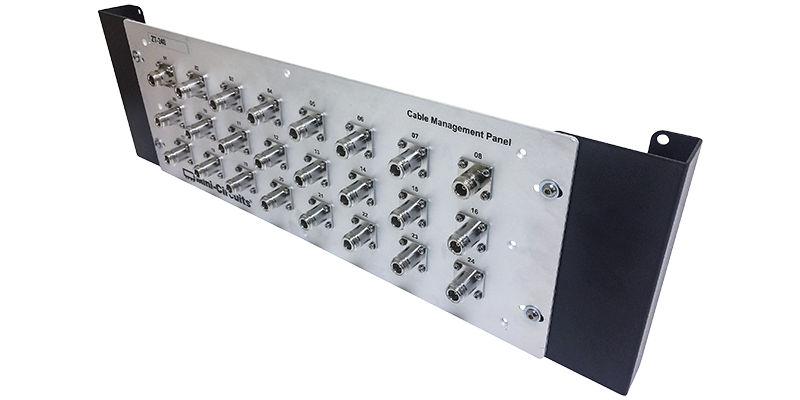

| ZT-240 | DC - 6000 | 4U | 36x N-N Adapters, Custom Brackets |
|
| ZT-240BK | DC - 6000 | 4U | 36x N-N Adapters, Black Anodized |
|
| ZT-245 | 300 - 1000 | 1U | 1x ZC8PD1-10+, SMA, 8-Way Splitters |
|
| ZT-255 | 500 - 8500 | 2U | 8x ZX10-2-852, SMA, 2-Way Splitter |
|
CONTACT US CATV (75Ω) Test Solutions
| Model Number | Description | Details |
|---|---|---|
| ZTVX-n-75 Series | 2 x 8, 2 x 10, 2 x12, 2 x 16 Switch matrices, 5-2500 MHz | |
| ZT-241 | 4x 4-Way Splitter, BNC, 5-500 MHz | |
| ZT-249 | CMTS Diplexed Test Box, F-Type, 5-1218 MHz | |
CONTACT US Custom Test Systems
| Model Number | Description | Details |
|---|---|---|
| ZT-228 | 4x Wi-Fi Diplexing Amplifier (2400-2500 & 5700-5900 MHz) | |
| ZT-188 | Wireless Base-Station / Handset Test Station (1600-2300 MHz) | |
| ZT-254 | Switched Filter Bank (1000-3000 MHz) | |
| ZT-234 | High Power (100W) Switched Load (1-3000 MHz) | |
